Detailed Description

Media Port Concepts

Media Port

A media port (represented with pjmedia_port "class") provides a generic and extensible framework for implementing media elements. Media element itself could be a media source, sink, or processing element. A media port interface basically has the following properties:

• media port information (pjmedia_port_info) to describe the media port properties (sampling rate, number of channels, etc.),
• optional pointer to function to acquire frames from the port (the get_frame() interface), which will be called by pjmedia_port_get_frame() public API, and
• optional pointer to function to store frames to the port (the put_frame() interface) which will be called by pjmedia_port_put_frame() public API.

The get_frame() and put_frame() interface of course would only need to be implemented if the media port emits and/or takes media frames respectively.

Media ports are passive "objects". By default, there is no worker thread to run the media flow. Applications (or other PJMEDIA components, as explained in Clock/Timing) must actively call pjmedia_port_get_frame() or pjmedia_port_put_frame() from/to the media port in order to retrieve/store media frames.

Some media ports (such as Conference Bridge and Resample Port) may be interconnected with (or encapsulate) other port, to perform the combined task of the ports, while some others represent the ultimate source/sink termination for the media. Interconnection means the upstream media port will call get_frame() and put_frame() to its downstream media port. For this to happen, the media ports need to have the same format, where format is defined as combination of sample format, clock rate, channel count, bits per sample, and samples per frame for audio media.

Example: Manual Resampling

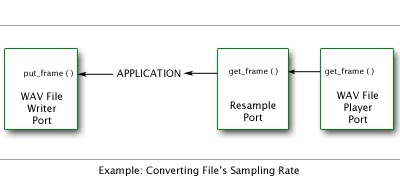

For example, suppose application wants to convert the sampling rate of one WAV file to another. In this case, application would create and arrange media ports connection as follows:

Application would setup the media ports using the following pseudo- code:

pjmedia_port *player, *resample, *writer;
pj_status_t status;

// Create the file player port.
status = pjmedia_wav_player_port_create(pool,
                                          "Input.WAV",          // file name
                                          20,                   // ptime.
                                          PJMEDIA_FILE_NO_LOOP, // flags
                                          0,                    // buffer size
                                          NULL,                 // user data.
                                          &player );
PJ_ASSERT_RETURN(status==PJ_SUCCESS, PJ_SUCCESS);

// Create the resample port with specifying the target sampling rate,
// and with the file port as the source. This will effectively
// connect the resample port with the player port.
status = pjmedia_resample_port_create( pool, player, 8000,
                                         0, &resample);
PJ_ASSERT_RETURN(status==PJ_SUCCESS, PJ_SUCCESS);

// Create the file writer, specifying the resample port's configuration
// as the WAV parameters.
status pjmedia_wav_writer_port_create(pool,
                                        "Output.WAV",  // file name.
                                        resample->info.clock_rate,
                                        resample->info.channel_count,
                                        resample->info.samples_per_frame,
                                        resample->info.bits_per_sample,
                                        0,          // flags
                                        0,          // buffer size
                                        NULL,       // user data.
                                        &writer);

After the ports have been set up, application can perform the conversion process by running this loop:

pj_int16_t samplebuf[MAX_FRAME];

while (1) {
    pjmedia_frame frame;
    pj_status_t status;

    frame.buf = samplebuf;
    frame.size = sizeof(samplebuf);

    // Get the frame from resample port.
    status = pjmedia_port_get_frame(resample, &frame);
    if (status != PJ_SUCCESS || frame.type == PJMEDIA_FRAME_TYPE_NONE) {
        // End-of-file, end the conversion.
        break;
    }

    // Put the frame to write port.
    status = pjmedia_port_put_frame(writer, &frame);
    if (status != PJ_SUCCESS) {
        // Error in writing the file.
        break;
    }
}

For the sake of completeness, after the resampling process is done, application would need to destroy the ports:

// Note: by default, destroying resample port will destroy the
//         the downstream port too.
  pjmedia_port_destroy(resample);
  pjmedia_port_destroy(writer);

The above steps are okay for our simple purpose of changing file's sampling rate. But for other purposes, the process of reading and writing frames need to be done in timely manner (for example, sending RTP packets to remote stream). And more over, as the application's scope goes bigger, the same pattern of manually reading/writing frames comes up more and more often, thus perhaps it would be better if PJMEDIA provides mechanism to automate this process.

And indeed PJMEDIA does provide such mechanism, which is described in Clock/Timing section.

Automating Media Flow

PJMEDIA provides few mechanisms to make media flows automatically among media ports. This concept is described in Clock/Timing section.

Macro Definition Documentation

PJMEDIA_PORT_SIG

#define PJMEDIA_PORT_SIG	(		a,
			b,
			c,
			d
	)		PJMEDIA_OBJ_SIG(a,b,c,d)

Create 32bit port signature from ASCII characters.

Enumeration Type Documentation

pjmedia_port_op

enum pjmedia_port_op

Port operation setting.

Enumerator
PJMEDIA_PORT_NO_CHANGE	No change to the port TX or RX settings.
PJMEDIA_PORT_DISABLE	TX or RX is disabled from the port. It means get_frame() or put_frame() WILL NOT be called for this port.
PJMEDIA_PORT_MUTE	TX or RX is muted, which means that get_frame() or put_frame() will still be called, but the audio frame is discarded.
PJMEDIA_PORT_ENABLE	Enable TX and RX to/from this port.

Function Documentation

PJMEDIA_PIA_SRATE()

unsigned PJMEDIA_PIA_SRATE

(

const pjmedia_port_info *

pia

)

Utility to retrieve audio clock rate/sampling rate value from pjmedia_port_info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Audio clock rate.

References pjmedia_format::aud, pjmedia_audio_format_detail::clock_rate, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_CCNT()

unsigned PJMEDIA_PIA_CCNT

(

const pjmedia_port_info *

pia

)

Utility to retrieve audio channel count value from pjmedia_port_info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Audio channel count.

References pjmedia_format::aud, pjmedia_audio_format_detail::channel_count, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_BITS()

unsigned PJMEDIA_PIA_BITS

(

const pjmedia_port_info *

pia

)

Utility to retrieve audio bits per sample value from pjmedia_port_info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Number of bits per sample.

References pjmedia_format::aud, pjmedia_audio_format_detail::bits_per_sample, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_PTIME()

unsigned PJMEDIA_PIA_PTIME

(

const pjmedia_port_info *

pia

)

Utility to retrieve audio frame interval (ptime) value from pjmedia_port_info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Frame interval in msec.

References pjmedia_format::aud, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pjmedia_audio_format_detail::frame_time_usec, pj_assert, PJ_INLINE, PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_SPF()

unsigned PJMEDIA_PIA_SPF

(

const pjmedia_port_info *

pia

)

This is a utility routine to retrieve the audio samples_per_frame value from port info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Samples per frame value.

References pjmedia_format::aud, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_AFD_SPF(), PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_AVG_BPS()

unsigned PJMEDIA_PIA_AVG_BPS

(

const pjmedia_port_info *

pia

)

This is a utility routine to retrieve the average bitrate value from port info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Bitrate, in bits per second.

References pjmedia_format::aud, pjmedia_audio_format_detail::avg_bps, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_MAX_BPS()

unsigned PJMEDIA_PIA_MAX_BPS

(

const pjmedia_port_info *

pia

)

This is a utility routine to retrieve the maximum bitrate value from port info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Bitrate, in bits per second.

References pjmedia_format::aud, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pjmedia_audio_format_detail::max_bps, pj_assert, PJ_INLINE, PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_AVG_FSZ()

unsigned PJMEDIA_PIA_AVG_FSZ

(

const pjmedia_port_info *

pia

)

This is a utility routine to retrieve the average audio frame size value from pjmedia_port_info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Frame size in bytes.

References pjmedia_format::aud, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_AFD_AVG_FSZ(), PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

PJMEDIA_PIA_MAX_FSZ()

unsigned PJMEDIA_PIA_MAX_FSZ

(

const pjmedia_port_info *

pia

)

Utility to retrieve audio frame size from maximum bitrate from pjmedia_port_info.

Parameters

pia	Pointer to port info containing audio format.

Returns

Frame size in bytes.

References pjmedia_format::aud, pjmedia_format::det, pjmedia_format::detail_type, pjmedia_port_info::fmt, pj_assert, PJ_INLINE, PJMEDIA_AFD_MAX_FSZ(), PJMEDIA_FORMAT_DETAIL_AUDIO, PJMEDIA_TYPE_AUDIO, and pjmedia_format::type.

pjmedia_port_info_init()

pj_status_t pjmedia_port_info_init	(	pjmedia_port_info *	info,
		const pj_str_t *	name,
		unsigned	signature,
		unsigned	clock_rate,
		unsigned	channel_count,
		unsigned	bits_per_sample,
		unsigned	samples_per_frame
	)

This is an auxiliary function to initialize port info for ports which deal with PCM audio.

Parameters

info	The port info to be initialized.
name	Port name.
signature	Port signature.
clock_rate	Port's clock rate.
channel_count	Number of channels.
bits_per_sample	Bits per sample.
samples_per_frame	Number of samples per frame.

Returns

PJ_SUCCESS on success.

pjmedia_port_info_init2()

pj_status_t pjmedia_port_info_init2	(	pjmedia_port_info *	info,
		const pj_str_t *	name,
		unsigned	signature,
		pjmedia_dir	dir,
		const pjmedia_format *	fmt
	)

This is an auxiliary function to initialize port info for ports which deal with PCM audio.

Parameters

info	The port info to be initialized.
name	Port name.
signature	Port signature.
dir	Port's direction.
fmt	Port's media format.

Returns

PJ_SUCCESS on success.

pjmedia_port_get_clock_src()

pjmedia_clock_src* pjmedia_port_get_clock_src	(	pjmedia_port *	port,
		pjmedia_dir	dir
	)

Get a clock source from the port.

Parameters

port	The media port.
dir	Media port's direction.

Returns

The clock source or NULL if clock source is not present in the port.

pjmedia_port_get_frame()

pj_status_t pjmedia_port_get_frame	(	pjmedia_port *	port,
		pjmedia_frame *	frame
	)

Get a frame from the port (and subsequent downstream ports).

Parameters

port	The media port.
frame	Frame to store samples.

Returns

PJ_SUCCESS on success, or the appropriate error code.

pjmedia_port_put_frame()

pj_status_t pjmedia_port_put_frame	(	pjmedia_port *	port,
		pjmedia_frame *	frame
	)

Put a frame to the port (and subsequent downstream ports).

Parameters

port	The media port.
frame	Frame to the put to the port.

Returns

PJ_SUCCESS on success, or the appropriate error code.

pjmedia_port_destroy()

pj_status_t pjmedia_port_destroy

(

pjmedia_port *

port

)

Destroy port (and subsequent downstream ports)

Parameters

port	The media port.

Returns

PJ_SUCCESS on success, or the appropriate error code.
