pjturn-client, a sample TURN client

This is a simple, interactive TURN client application, with the following features:

• DNS SRV resolution
• TCP connection to TURN server
• Optional fingerprint

This file is pjnath/src/pjturn-client/client_main.c.

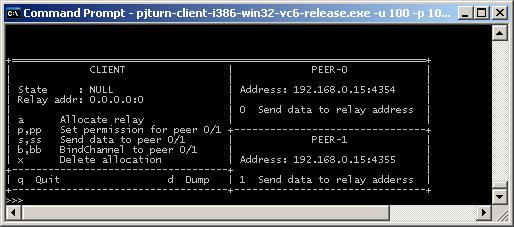

Screenshot on WinXP:

pjturn_client on WinXP

/* $Id: client_main.c 3553 2011-05-05 06:14:19Z nanang $ */
/*
 * Copyright (C) 2008-2011 Teluu Inc. (http://www.teluu.com)
 * Copyright (C) 2003-2008 Benny Prijono <benny@prijono.org>
 *
 * This program is free software; you can redistribute it and/or modify
 * it under the terms of the GNU General Public License as published by
 * the Free Software Foundation; either version 2 of the License, or
 * (at your option) any later version.
 *
 * This program is distributed in the hope that it will be useful,
 * but WITHOUT ANY WARRANTY; without even the implied warranty of
 * MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
 * GNU General Public License for more details.
 *
 * You should have received a copy of the GNU General Public License
 * along with this program; if not, write to the Free Software
 * Foundation, Inc., 59 Temple Place, Suite 330, Boston, MA  02111-1307  USA
 */
#include <pjnath.h>
#include <pjlib-util.h>
#include <pjlib.h>


#define THIS_FILE       "client_main.c"
#define LOCAL_PORT      1998
#define BANDWIDTH       64                  /* -1 to disable */
#define LIFETIME        600                 /* -1 to disable */
#define REQ_TRANSPORT   -1                  /* 0: udp, 1: tcp, -1: disable */
#define REQ_PORT_PROPS  -1                  /* -1 to disable */
#define REQ_IP          0                   /* IP address string */

//#define OPTIONS               PJ_STUN_NO_AUTHENTICATE
#define OPTIONS         0


struct peer
{
    pj_stun_sock   *stun_sock;
    pj_sockaddr     mapped_addr;
};


static struct global
{
    pj_caching_pool      cp;
    pj_pool_t           *pool;
    pj_stun_config       stun_config;
    pj_thread_t         *thread;
    pj_bool_t            quit;

    pj_dns_resolver     *resolver;

    pj_turn_sock        *relay;
    pj_sockaddr          relay_addr;

    struct peer          peer[2];
} g;

static struct options
{
    pj_bool_t    use_tcp;
    char        *srv_addr;
    char        *srv_port;
    char        *realm;
    char        *user_name;
    char        *password;
    pj_bool_t    use_fingerprint;
    char        *stun_server;
    char        *nameserver;
} o;


static int worker_thread(void *unused);
static void turn_on_rx_data(pj_turn_sock *relay,
                            void *pkt,
                            unsigned pkt_len,
                            const pj_sockaddr_t *peer_addr,
                            unsigned addr_len);
static void turn_on_state(pj_turn_sock *relay, pj_turn_state_t old_state,
                          pj_turn_state_t new_state);
static pj_bool_t stun_sock_on_status(pj_stun_sock *stun_sock,
                                     pj_stun_sock_op op,
                                     pj_status_t status);
static pj_bool_t stun_sock_on_rx_data(pj_stun_sock *stun_sock,
                                      void *pkt,
                                      unsigned pkt_len,
                                      const pj_sockaddr_t *src_addr,
                                      unsigned addr_len);


static void my_perror(const char *title, pj_status_t status)
{
    char errmsg[PJ_ERR_MSG_SIZE];
    pj_strerror(status, errmsg, sizeof(errmsg));

    PJ_LOG(3,(THIS_FILE, "%s: %s", title, errmsg));
}

#define CHECK(expr)     status=expr; \
                        if (status!=PJ_SUCCESS) { \
                            my_perror(#expr, status); \
                            return status; \
                        }

static int init()
{
    int i;
    pj_status_t status;

    CHECK( pj_init() );
    CHECK( pjlib_util_init() );
    CHECK( pjnath_init() );

    /* Check that server is specified */
    if (!o.srv_addr) {
        printf("Error: server must be specified\n");
        return PJ_EINVAL;
    }

    pj_caching_pool_init(&g.cp, &pj_pool_factory_default_policy, 0);

    g.pool = pj_pool_create(&g.cp.factory, "main", 1000, 1000, NULL);

    /* Init global STUN config */
    pj_stun_config_init(&g.stun_config, &g.cp.factory, 0, NULL, NULL);

    /* Create global timer heap */
    CHECK( pj_timer_heap_create(g.pool, 1000, &g.stun_config.timer_heap) );

    /* Create global ioqueue */
    CHECK( pj_ioqueue_create(g.pool, 16, &g.stun_config.ioqueue) );

    /*
     * Create peers
     */
    for (i=0; i<(int)PJ_ARRAY_SIZE(g.peer); ++i) {
        pj_stun_sock_cb stun_sock_cb;
        char name[] = "peer0";
        pj_uint16_t port;
        pj_stun_sock_cfg ss_cfg;
        pj_str_t server;

        pj_bzero(&stun_sock_cb, sizeof(stun_sock_cb));
        stun_sock_cb.on_rx_data = &stun_sock_on_rx_data;
        stun_sock_cb.on_status = &stun_sock_on_status;

        g.peer[i].mapped_addr.addr.sa_family = pj_AF_INET();

        pj_stun_sock_cfg_default(&ss_cfg);
#if 1
        /* make reading the log easier */
        ss_cfg.ka_interval = 300;
#endif

        name[strlen(name)-1] = '0'+i;
        status = pj_stun_sock_create(&g.stun_config, name, pj_AF_INET(),
                                     &stun_sock_cb, &ss_cfg,
                                     &g.peer[i], &g.peer[i].stun_sock);
        if (status != PJ_SUCCESS) {
            my_perror("pj_stun_sock_create()", status);
            return status;
        }

        if (o.stun_server) {
            server = pj_str(o.stun_server);
            port = PJ_STUN_PORT;
        } else {
            server = pj_str(o.srv_addr);
            port = (pj_uint16_t)(o.srv_port?atoi(o.srv_port):PJ_STUN_PORT);
        }
        status = pj_stun_sock_start(g.peer[i].stun_sock, &server,
                                    port,  NULL);
        if (status != PJ_SUCCESS) {
            my_perror("pj_stun_sock_start()", status);
            return status;
        }
    }

    /* Start the worker thread */
    CHECK( pj_thread_create(g.pool, "stun", &worker_thread, NULL, 0, 0, &g.thread) );


    return PJ_SUCCESS;
}


static int client_shutdown()
{
    unsigned i;

    if (g.thread) {
        g.quit = 1;
        pj_thread_join(g.thread);
        pj_thread_destroy(g.thread);
        g.thread = NULL;
    }
    if (g.relay) {
        pj_turn_sock_destroy(g.relay);
        g.relay = NULL;
    }
    for (i=0; i<PJ_ARRAY_SIZE(g.peer); ++i) {
        if (g.peer[i].stun_sock) {
            pj_stun_sock_destroy(g.peer[i].stun_sock);
            g.peer[i].stun_sock = NULL;
        }
    }
    if (g.stun_config.timer_heap) {
        pj_timer_heap_destroy(g.stun_config.timer_heap);
        g.stun_config.timer_heap = NULL;
    }
    if (g.stun_config.ioqueue) {
        pj_ioqueue_destroy(g.stun_config.ioqueue);
        g.stun_config.ioqueue = NULL;
    }
    if (g.pool) {
        pj_pool_release(g.pool);
        g.pool = NULL;
    }
    pj_pool_factory_dump(&g.cp.factory, PJ_TRUE);
    pj_caching_pool_destroy(&g.cp);

    return PJ_SUCCESS;
}


static int worker_thread(void *unused)
{
    PJ_UNUSED_ARG(unused);

    while (!g.quit) {
        const pj_time_val delay = {0, 10};

        /* Poll ioqueue for the TURN client */
        pj_ioqueue_poll(g.stun_config.ioqueue, &delay);

        /* Poll the timer heap */
        pj_timer_heap_poll(g.stun_config.timer_heap, NULL);

    }

    return 0;
}

static pj_status_t create_relay(void)
{
    pj_turn_sock_cb rel_cb;
    pj_stun_auth_cred cred;
    pj_str_t srv;
    pj_status_t status;

    if (g.relay) {
        PJ_LOG(1,(THIS_FILE, "Relay already created"));
        return -1;
    }

    /* Create DNS resolver if configured */
    if (o.nameserver) {
        pj_str_t ns = pj_str(o.nameserver);

        status = pj_dns_resolver_create(&g.cp.factory, "resolver", 0,
                                        g.stun_config.timer_heap,
                                        g.stun_config.ioqueue, &g.resolver);
        if (status != PJ_SUCCESS) {
            PJ_LOG(1,(THIS_FILE, "Error creating resolver (err=%d)", status));
            return status;
        }

        status = pj_dns_resolver_set_ns(g.resolver, 1, &ns, NULL);
        if (status != PJ_SUCCESS) {
            PJ_LOG(1,(THIS_FILE, "Error configuring nameserver (err=%d)", status));
            return status;
        }
    }

    pj_bzero(&rel_cb, sizeof(rel_cb));
    rel_cb.on_rx_data = &turn_on_rx_data;
    rel_cb.on_state = &turn_on_state;
    CHECK( pj_turn_sock_create(&g.stun_config, pj_AF_INET(),
                               (o.use_tcp? PJ_TURN_TP_TCP : PJ_TURN_TP_UDP),
                               &rel_cb, 0,
                               NULL, &g.relay) );

    if (o.user_name) {
        pj_bzero(&cred, sizeof(cred));
        cred.type = PJ_STUN_AUTH_CRED_STATIC;
        cred.data.static_cred.realm = pj_str(o.realm);
        cred.data.static_cred.username = pj_str(o.user_name);
        cred.data.static_cred.data_type = PJ_STUN_PASSWD_PLAIN;
        cred.data.static_cred.data = pj_str(o.password);
        //cred.data.static_cred.nonce = pj_str(o.nonce);
    } else {
        PJ_LOG(2,(THIS_FILE, "Warning: no credential is set"));
    }

    srv = pj_str(o.srv_addr);
    CHECK(pj_turn_sock_alloc(g.relay,                            /* the relay */
                            &srv,                                /* srv addr */
                            (o.srv_port?atoi(o.srv_port):PJ_STUN_PORT),/* def port */
                            g.resolver,                          /* resolver */
                            (o.user_name?&cred:NULL),            /* credential */
                            NULL)                                /* alloc param */
                            );

    return PJ_SUCCESS;
}

static void destroy_relay(void)
{
    if (g.relay) {
        pj_turn_sock_destroy(g.relay);
    }
}


static void turn_on_rx_data(pj_turn_sock *relay,
                            void *pkt,
                            unsigned pkt_len,
                            const pj_sockaddr_t *peer_addr,
                            unsigned addr_len)
{
    char addrinfo[80];

    pj_sockaddr_print(peer_addr, addrinfo, sizeof(addrinfo), 3);

    PJ_LOG(3,(THIS_FILE, "Client received %d bytes data from %s: %.*s",
              pkt_len, addrinfo, pkt_len, pkt));
}


static void turn_on_state(pj_turn_sock *relay, pj_turn_state_t old_state,
                          pj_turn_state_t new_state)
{
    PJ_LOG(3,(THIS_FILE, "State %s --> %s", pj_turn_state_name(old_state),
              pj_turn_state_name(new_state)));

    if (new_state == PJ_TURN_STATE_READY) {
        pj_turn_session_info info;
        pj_turn_sock_get_info(relay, &info);
        pj_memcpy(&g.relay_addr, &info.relay_addr, sizeof(pj_sockaddr));
    } else if (new_state > PJ_TURN_STATE_READY && g.relay) {
        PJ_LOG(3,(THIS_FILE, "Relay shutting down.."));
        g.relay = NULL;
    }
}

static pj_bool_t stun_sock_on_status(pj_stun_sock *stun_sock,
                                     pj_stun_sock_op op,
                                     pj_status_t status)
{
    struct peer *peer = (struct peer*) pj_stun_sock_get_user_data(stun_sock);

    if (status == PJ_SUCCESS) {
        PJ_LOG(4,(THIS_FILE, "peer%d: %s success", peer-g.peer,
                  pj_stun_sock_op_name(op)));
    } else {
        char errmsg[PJ_ERR_MSG_SIZE];
        pj_strerror(status, errmsg, sizeof(errmsg));
        PJ_LOG(1,(THIS_FILE, "peer%d: %s error: %s", peer-g.peer,
                  pj_stun_sock_op_name(op), errmsg));
        return PJ_FALSE;
    }

    if (op==PJ_STUN_SOCK_BINDING_OP || op==PJ_STUN_SOCK_KEEP_ALIVE_OP) {
        pj_stun_sock_info info;
        int cmp;

        pj_stun_sock_get_info(stun_sock, &info);
        cmp = pj_sockaddr_cmp(&info.mapped_addr, &peer->mapped_addr);

        if (cmp) {
            char straddr[PJ_INET6_ADDRSTRLEN+10];

            pj_sockaddr_cp(&peer->mapped_addr, &info.mapped_addr);
            pj_sockaddr_print(&peer->mapped_addr, straddr, sizeof(straddr), 3);
            PJ_LOG(3,(THIS_FILE, "peer%d: STUN mapped address is %s",
                      peer-g.peer, straddr));
        }
    }

    return PJ_TRUE;
}

static pj_bool_t stun_sock_on_rx_data(pj_stun_sock *stun_sock,
                                      void *pkt,
                                      unsigned pkt_len,
                                      const pj_sockaddr_t *src_addr,
                                      unsigned addr_len)
{
    struct peer *peer = (struct peer*) pj_stun_sock_get_user_data(stun_sock);
    char straddr[PJ_INET6_ADDRSTRLEN+10];

    ((char*)pkt)[pkt_len] = '\0';

    pj_sockaddr_print(src_addr, straddr, sizeof(straddr), 3);
    PJ_LOG(3,(THIS_FILE, "peer%d: received %d bytes data from %s: %s",
              peer-g.peer, pkt_len, straddr, (char*)pkt));

    return PJ_TRUE;
}


static void menu(void)
{
    pj_turn_session_info info;
    char client_state[20], relay_addr[80], peer0_addr[80], peer1_addr[80];

    if (g.relay) {
        pj_turn_sock_get_info(g.relay, &info);
        strcpy(client_state, pj_turn_state_name(info.state));
        if (info.state >= PJ_TURN_STATE_READY)
            pj_sockaddr_print(&info.relay_addr, relay_addr, sizeof(relay_addr), 3);
        else
            strcpy(relay_addr, "0.0.0.0:0");
    } else {
        strcpy(client_state, "NULL");
        strcpy(relay_addr, "0.0.0.0:0");
    }

    pj_sockaddr_print(&g.peer[0].mapped_addr, peer0_addr, sizeof(peer0_addr), 3);
    pj_sockaddr_print(&g.peer[1].mapped_addr, peer1_addr, sizeof(peer1_addr), 3);


    puts("\n");
    puts("+=====================================================================+");
    puts("|             CLIENT                 |             PEER-0             |");
    puts("|                                    |                                |");
    printf("| State     : %-12s           | Address: %-21s |\n",
           client_state, peer0_addr);
    printf("| Relay addr: %-21s  |                                |\n",
           relay_addr);
    puts("|                                    | 0  Send data to relay address  |");
    puts("| a      Allocate relay              |                                |");
    puts("| p,pp   Set permission for peer 0/1 +--------------------------------+");
    puts("| s,ss   Send data to peer 0/1       |             PEER-1             |");
    puts("| b,bb   BindChannel to peer 0/1     |                                |");
    printf("| x      Delete allocation           | Address: %-21s |\n",
          peer1_addr);
    puts("+------------------------------------+                                |");
    puts("| q  Quit                  d  Dump   | 1  Send data to relay adderss  |");
    puts("+------------------------------------+--------------------------------+");
    printf(">>> ");
    fflush(stdout);
}


static void console_main(void)
{
    while (!g.quit) {
        char input[32];
        struct peer *peer;
        pj_status_t status;

        menu();

        if (fgets(input, sizeof(input), stdin) == NULL)
            break;

        switch (input[0]) {
        case 'a':
            create_relay();
            break;
        case 'd':
            pj_pool_factory_dump(&g.cp.factory, PJ_TRUE);
            break;
        case 's':
            if (g.relay == NULL) {
                puts("Error: no relay");
                continue;
            }
            if (input[1]!='s')
                peer = &g.peer[0];
            else
                peer = &g.peer[1];

            strcpy(input, "Hello from client");
            status = pj_turn_sock_sendto(g.relay, (const pj_uint8_t*)input,
                                        strlen(input)+1,
                                        &peer->mapped_addr,
                                        pj_sockaddr_get_len(&peer->mapped_addr));
            if (status != PJ_SUCCESS)
                my_perror("turn_udp_sendto() failed", status);
            break;
        case 'b':
            if (g.relay == NULL) {
                puts("Error: no relay");
                continue;
            }
            if (input[1]!='b')
                peer = &g.peer[0];
            else
                peer = &g.peer[1];

            status = pj_turn_sock_bind_channel(g.relay, &peer->mapped_addr,
                                              pj_sockaddr_get_len(&peer->mapped_addr));
            if (status != PJ_SUCCESS)
                my_perror("turn_udp_bind_channel() failed", status);
            break;
        case 'p':
            if (g.relay == NULL) {
                puts("Error: no relay");
                continue;
            }
            if (input[1]!='p')
                peer = &g.peer[0];
            else
                peer = &g.peer[1];

            status = pj_turn_sock_set_perm(g.relay, 1, &peer->mapped_addr, 1);
            if (status != PJ_SUCCESS)
                my_perror("pj_turn_sock_set_perm() failed", status);
            break;
        case 'x':
            if (g.relay == NULL) {
                puts("Error: no relay");
                continue;
            }
            destroy_relay();
            break;
        case '0':
        case '1':
            if (g.relay == NULL) {
                puts("No relay");
                break;
            }
            peer = &g.peer[input[0]-'0'];
            sprintf(input, "Hello from peer%d", input[0]-'0');
            pj_stun_sock_sendto(peer->stun_sock, NULL, input, strlen(input)+1, 0,
                                &g.relay_addr, pj_sockaddr_get_len(&g.relay_addr));
            break;
        case 'q':
            g.quit = PJ_TRUE;
            break;
        }
    }
}


static void usage(void)
{
    puts("Usage: pjturn_client TURN-SERVER [OPTIONS]");
    puts("");
    puts("where TURN-SERVER is \"host[:port]\"");
    puts("");
    puts("and OPTIONS:");
    puts(" --tcp, -T             Use TCP to connect to TURN server");
    puts(" --realm, -r REALM     Set realm of the credential to REALM");
    puts(" --username, -u UID    Set username of the credential to UID");
    puts(" --password, -p PASSWD Set password of the credential to PASSWD");
    puts(" --fingerprint, -F     Use fingerprint for outgoing requests");
    puts(" --stun-srv, -S  NAME  Use this STUN srv instead of TURN for Binding discovery");
    puts(" --nameserver, -N IP   Activate DNS SRV, use this DNS server");
    puts(" --help, -h");
}

int main(int argc, char *argv[])
{
    struct pj_getopt_option long_options[] = {
        { "realm",      1, 0, 'r'},
        { "username",   1, 0, 'u'},
        { "password",   1, 0, 'p'},
        { "fingerprint",0, 0, 'F'},
        { "tcp",        0, 0, 'T'},
        { "help",       0, 0, 'h'},
        { "stun-srv",   1, 0, 'S'},
        { "nameserver", 1, 0, 'N'}
    };
    int c, opt_id;
    char *pos;
    pj_status_t status;

    while((c=pj_getopt_long(argc,argv, "r:u:p:S:N:hFT", long_options, &opt_id))!=-1) {
        switch (c) {
        case 'r':
            o.realm = pj_optarg;
            break;
        case 'u':
            o.user_name = pj_optarg;
            break;
        case 'p':
            o.password = pj_optarg;
            break;
        case 'h':
            usage();
            return 0;
        case 'F':
            o.use_fingerprint = PJ_TRUE;
            break;
        case 'T':
            o.use_tcp = PJ_TRUE;
            break;
        case 'S':
            o.stun_server = pj_optarg;
            break;
        case 'N':
            o.nameserver = pj_optarg;
            break;
        default:
            printf("Argument \"%s\" is not valid. Use -h to see help",
                   argv[pj_optind]);
            return 1;
        }
    }

    if (pj_optind == argc) {
        puts("Error: TARGET is needed");
        usage();
        return 1;
    }

    if ((pos=pj_ansi_strchr(argv[pj_optind], ':')) != NULL) {
        o.srv_addr = argv[pj_optind];
        *pos = '\0';
        o.srv_port = pos+1;
    } else {
        o.srv_addr = argv[pj_optind];
    }

    if ((status=init()) != 0)
        goto on_return;

    //if ((status=create_relay()) != 0)
    //  goto on_return;

    console_main();

on_return:
    client_shutdown();
    return status ? 1 : 0;
}

.
